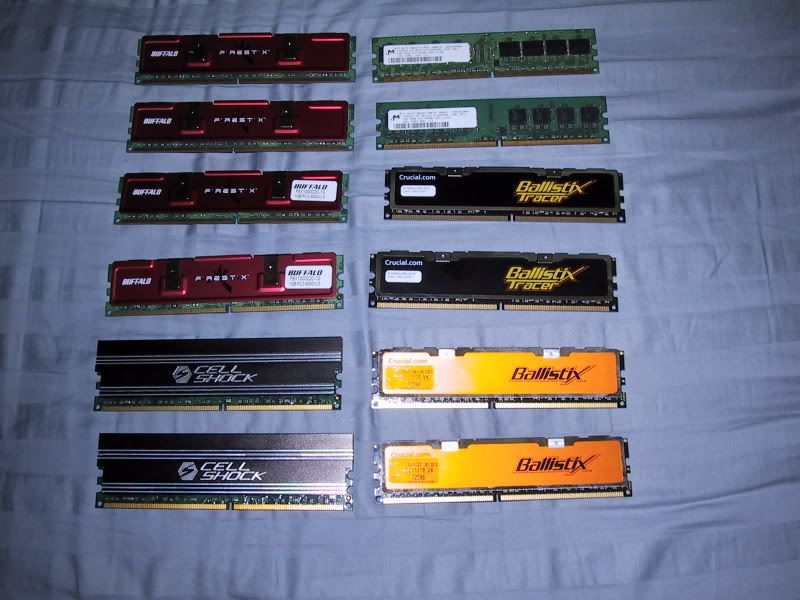

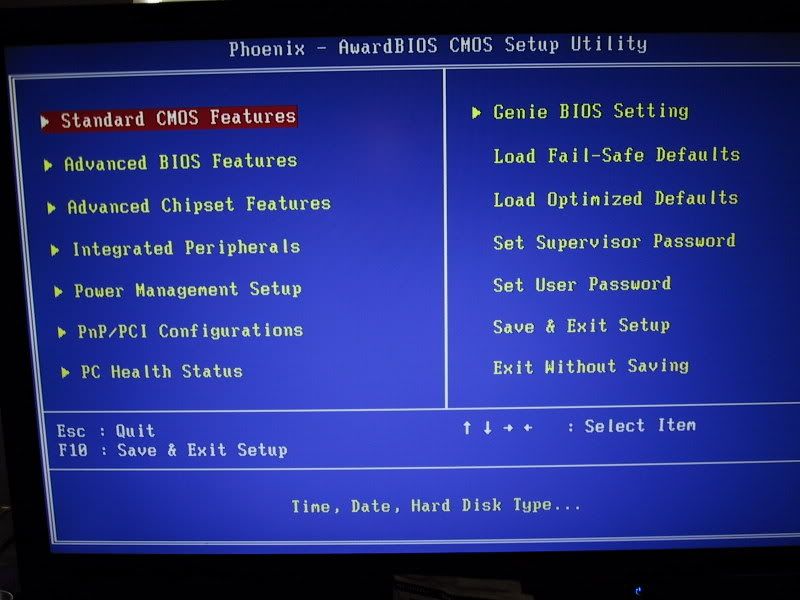

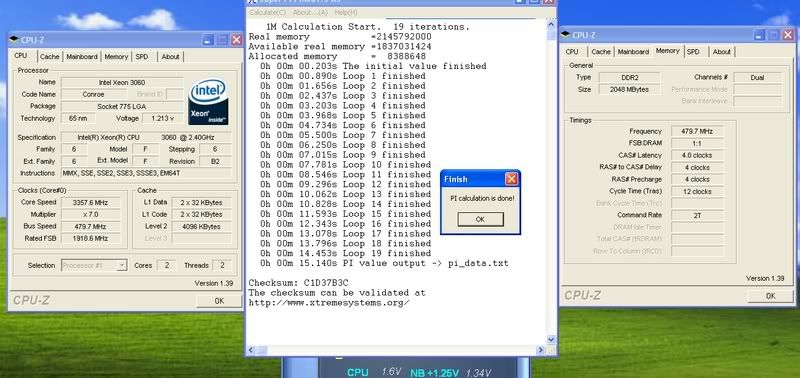

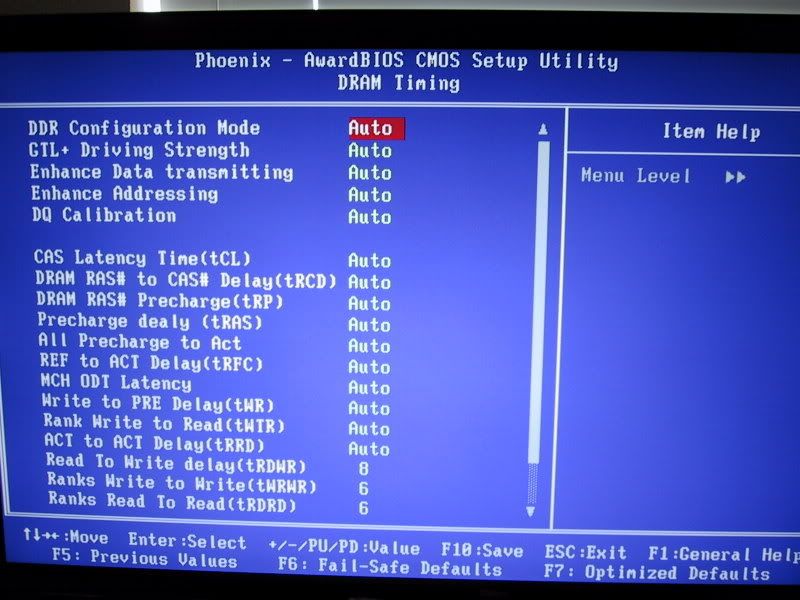

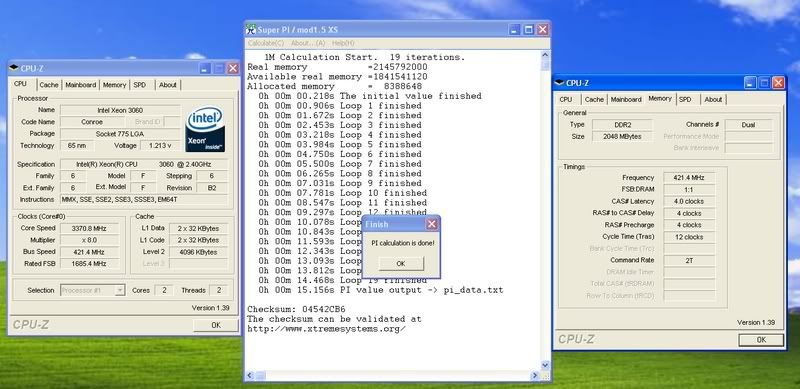

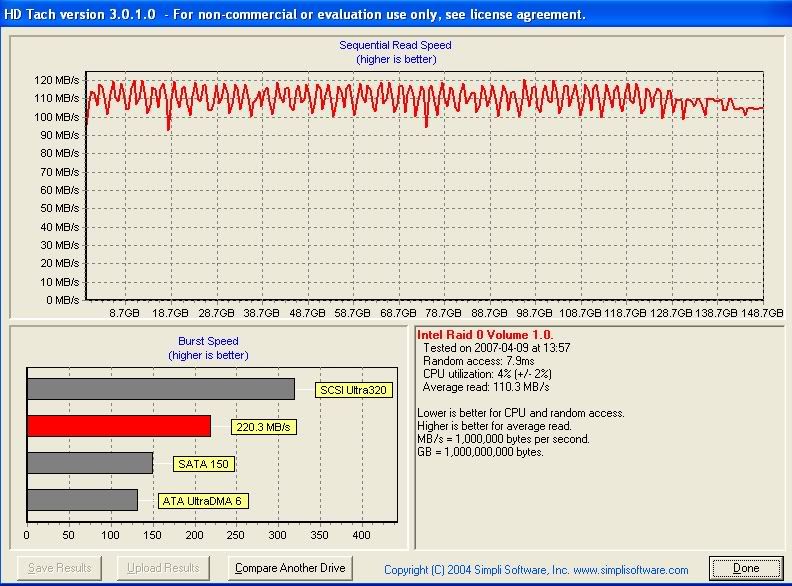

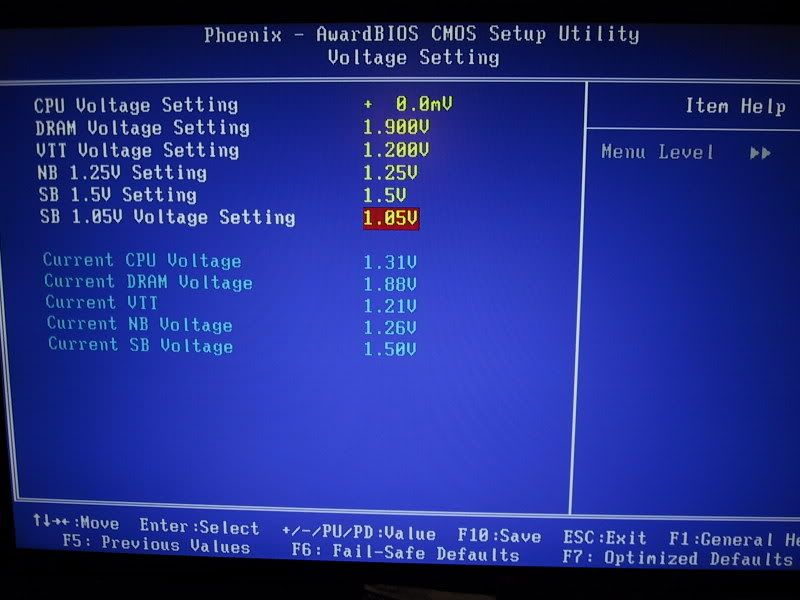

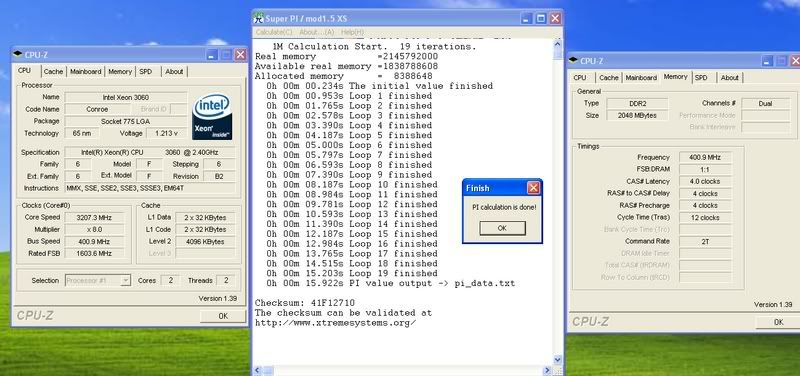

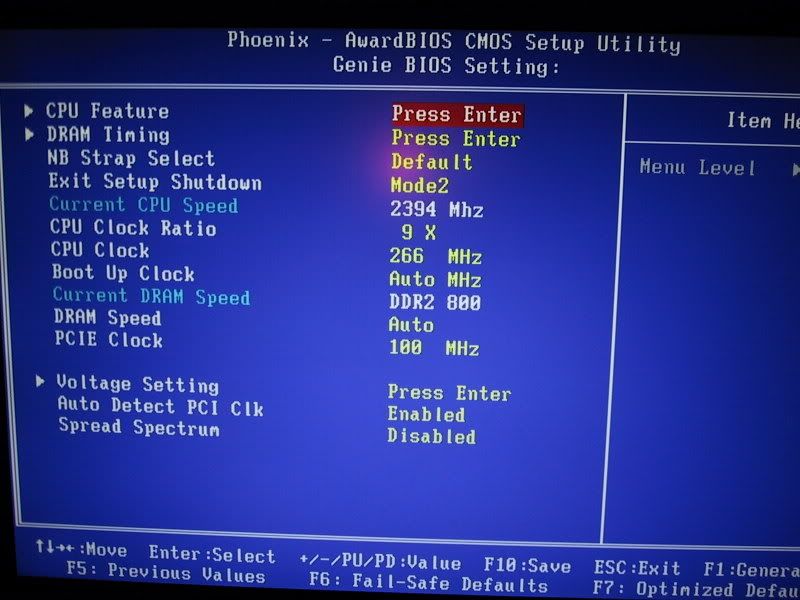

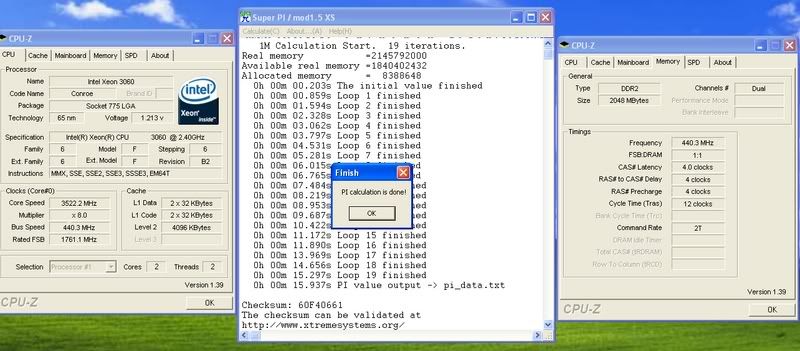

momomo6789 Posted April 13, 2007 Posted April 13, 2007 Fixed nvm great mobo just quirky butt hell Things i have noticed about this mobo Seems to have some kind of memory hole right after 480 fsb So i cannot boot 1-1 500 ... will try higher i did boot 590 4.4.4.12 4.55v 2/3 divider Cellshocks Also this mobo is A dfi meaning is is VEry Psu picky It didnt like my silverstone strider 850 watt so atm useing old 700 watto ocz. The box the mobo its self with lanparty treatment just stole my rd600 heatsinks b/c they are the same and fit The Bios http://i68.photobucket.com/albums/i5/MOMOM...90/IMG_7317.jpg http://i68.photobucket.com/albums/i5/MOMOM...90/IMG_7323.jpg http://i68.photobucket.com/albums/i5/MOMOM...90/IMG_7324.jpg http://i68.photobucket.com/albums/i5/MOMOM...90/IMG_7325.jpg Raid Performance http://i68.photobucket.com/albums/i5/MOMOMO67890/raid.jpg the memory's i will start this off with memory clocking then do phase on my cpu :behead: But anyways here so fsb action Quote Share this post Link to post Share on other sites More sharing options...

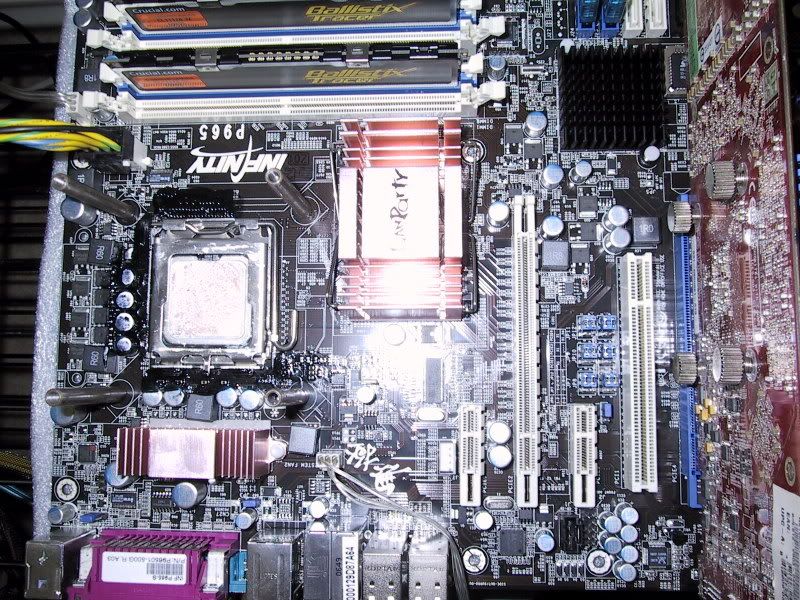

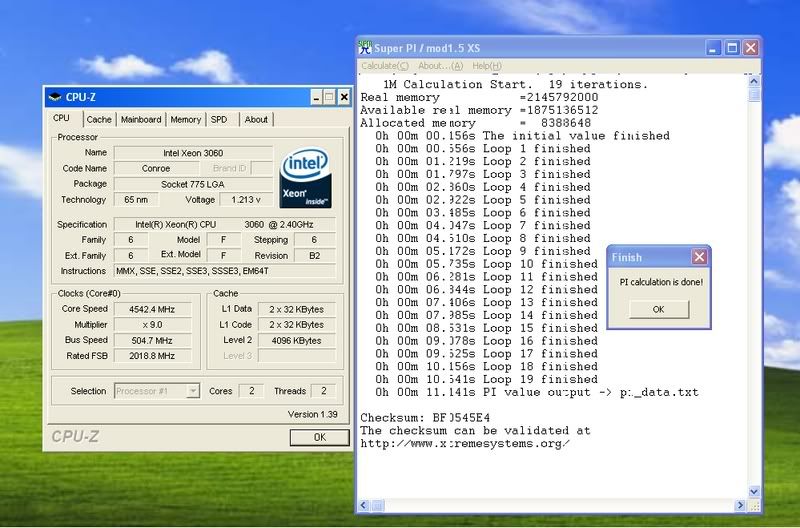

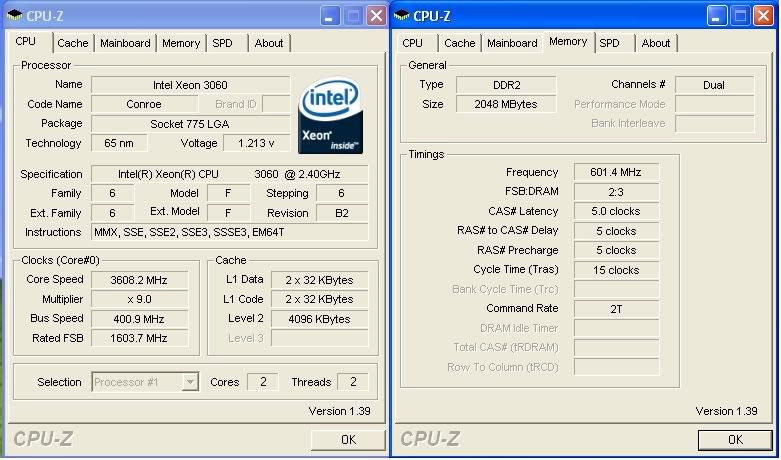

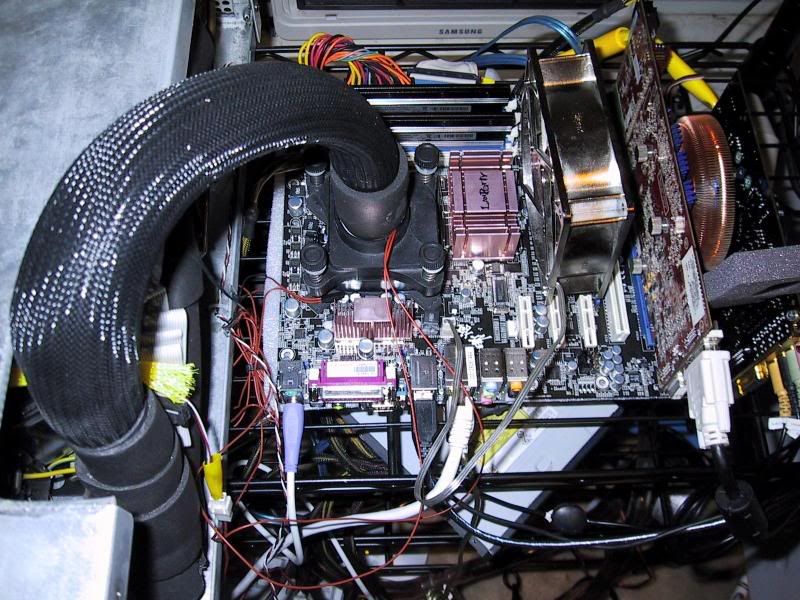

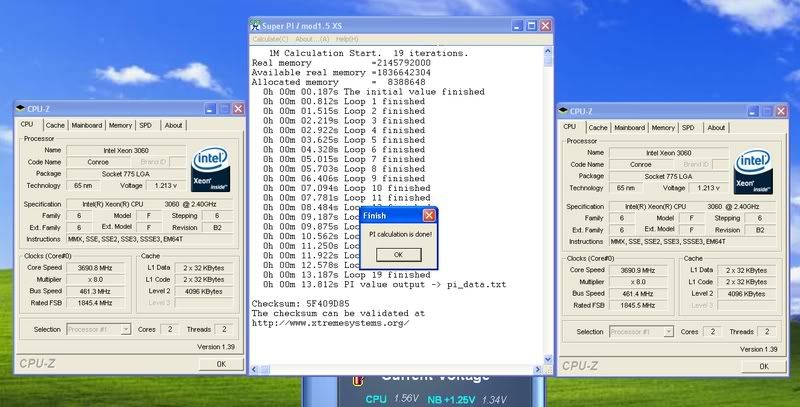

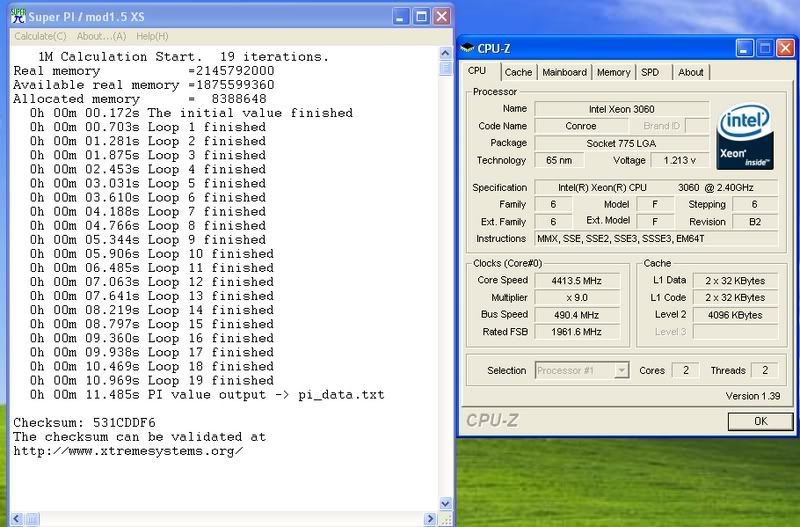

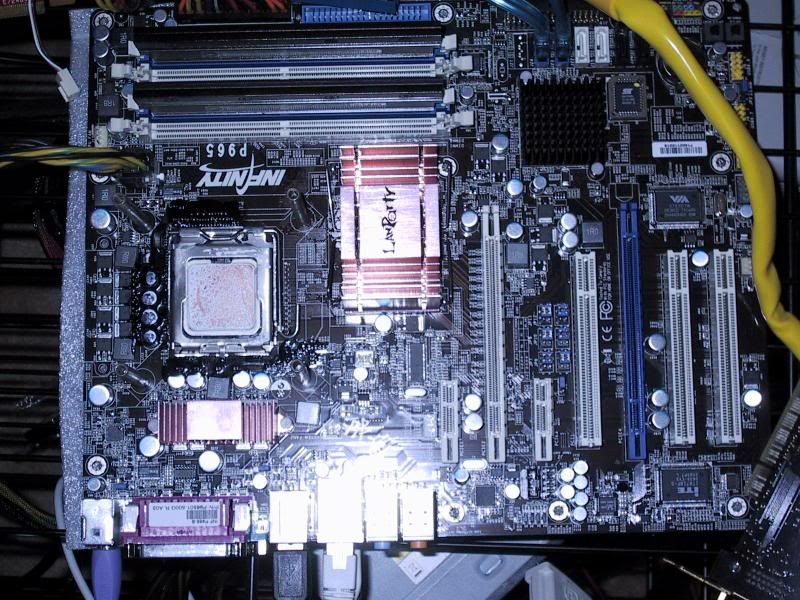

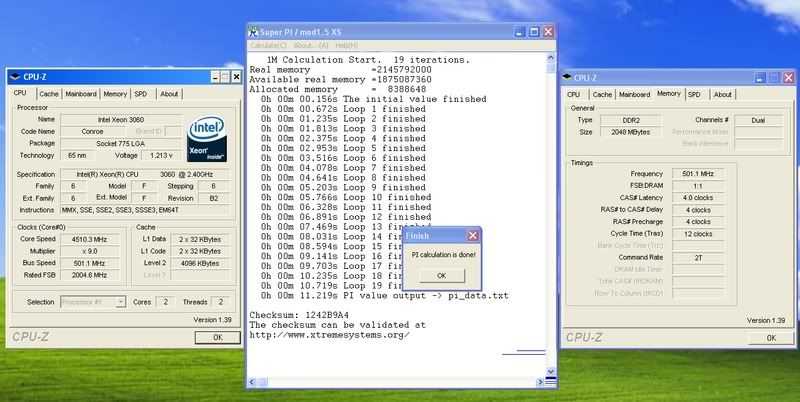

momomo6789 Posted April 13, 2007 Posted April 13, 2007 Pic of the mobo pic of phase + mobo The o/cing part on phase First try seems to be on target 500 505 Now to work on memory try some 5.5.5. 1300 with 500 fsb max memory so far Quote Share this post Link to post Share on other sites More sharing options...
Splave Posted April 13, 2007 Posted April 13, 2007 pretty sick what memory you using at 600? Quote Share this post Link to post Share on other sites More sharing options...
momomo6789 Posted April 13, 2007 Posted April 13, 2007 cell shocks but im sure all of them can do it with ease Quote Share this post Link to post Share on other sites More sharing options...
red930 Posted April 13, 2007 Posted April 13, 2007 cell shocks but im sure all of them can do it with ease At 5-5-5 almost any D9 ought to be able to pretty easily with 2.4-2.5 volts. :angel: Pretty impressive on a 965 chipset though - what voltage were you using and how stable are they at that speed? Quote Share this post Link to post Share on other sites More sharing options...
momomo6789 Posted April 13, 2007 Posted April 13, 2007 965 on a higher strap allows for higher memory speeds on p5b ive had memory upwards of 1300+ how stable was it not very much @ all did 32m and crashed after 30 mins of memtest86 on 5 and the windows one crashed after 200% checked Seems stable but not stable but it was the chipset holeing it back tryed 2.45v didnt make a diff also thats 2.35v +- 1 Quote Share this post Link to post Share on other sites More sharing options...
red930 Posted April 13, 2007 Posted April 13, 2007 Still debating what board to ask for as a graduation gift...this doesn't look all that terrible but I think I'm leaning towards a 680i at the moment. Quote Share this post Link to post Share on other sites More sharing options...
momomo6789 Posted April 13, 2007 Posted April 13, 2007 humm i think its nice not as easy o/c as my abit quad gt Quote Share this post Link to post Share on other sites More sharing options...
Thraxz Posted April 13, 2007 Posted April 13, 2007 What kind of voltage settings are you using to hit 500+ FSB? Quote Share this post Link to post Share on other sites More sharing options...
momomo6789 Posted April 13, 2007 Posted April 13, 2007 500 1.65v nb stock sb Quote Share this post Link to post Share on other sites More sharing options...
Thraxz Posted April 13, 2007 Posted April 13, 2007 K... WEIRD... I can hit 400FSB on stock Vnb but ONE FSB beyond that won't go. I know it's something I'M doing wrong as I don't know that board that well yet. Quote Share this post Link to post Share on other sites More sharing options...
momomo6789 Posted April 13, 2007 Posted April 13, 2007 up your vtt also i did 480 1.35v Quote Share this post Link to post Share on other sites More sharing options...
